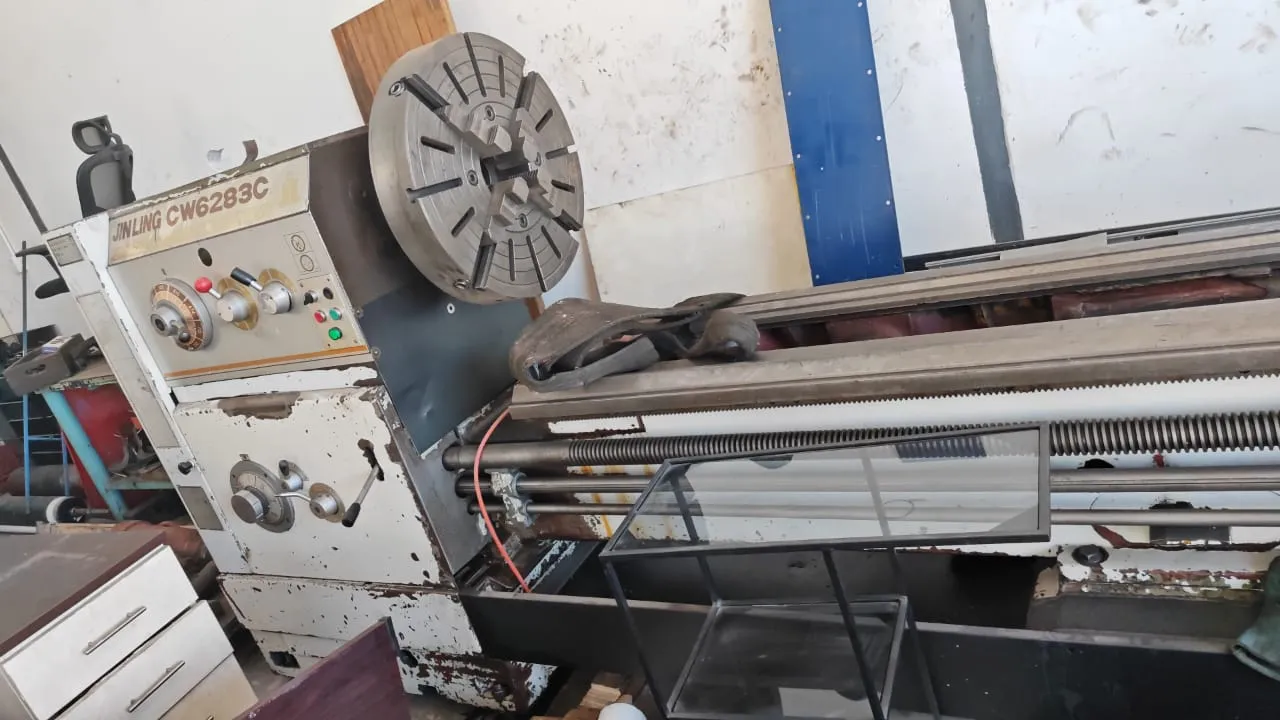

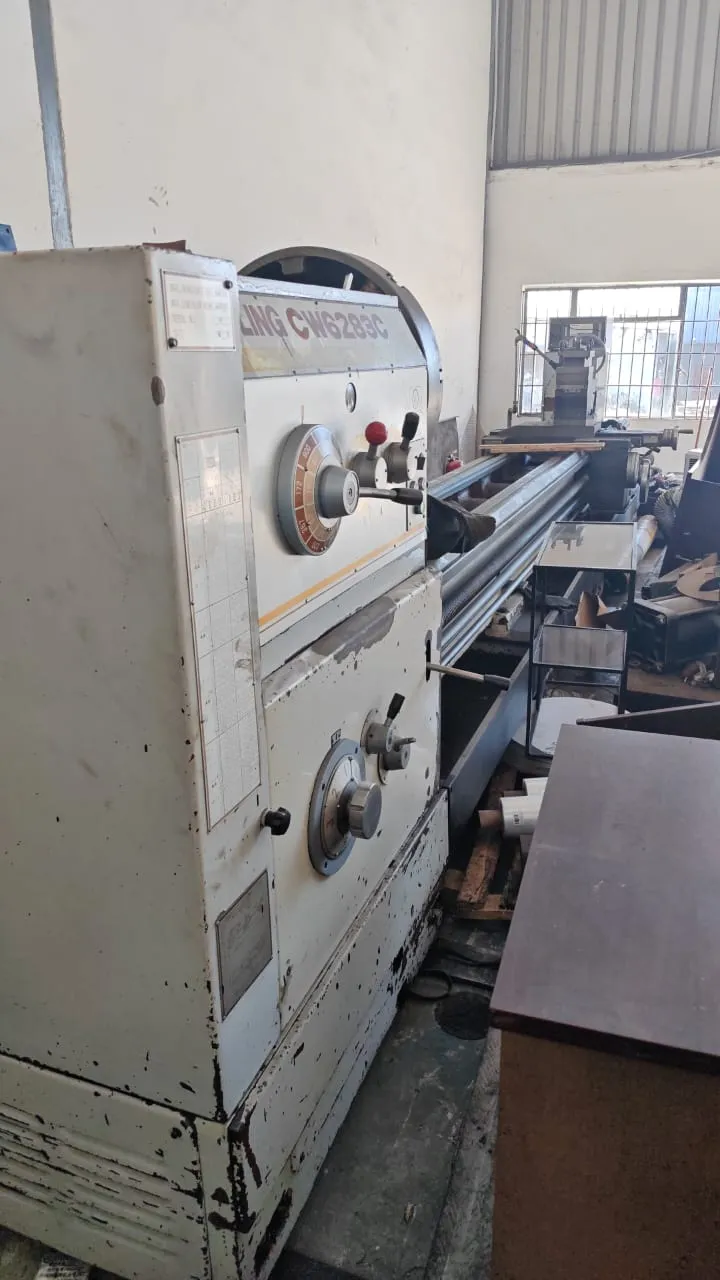

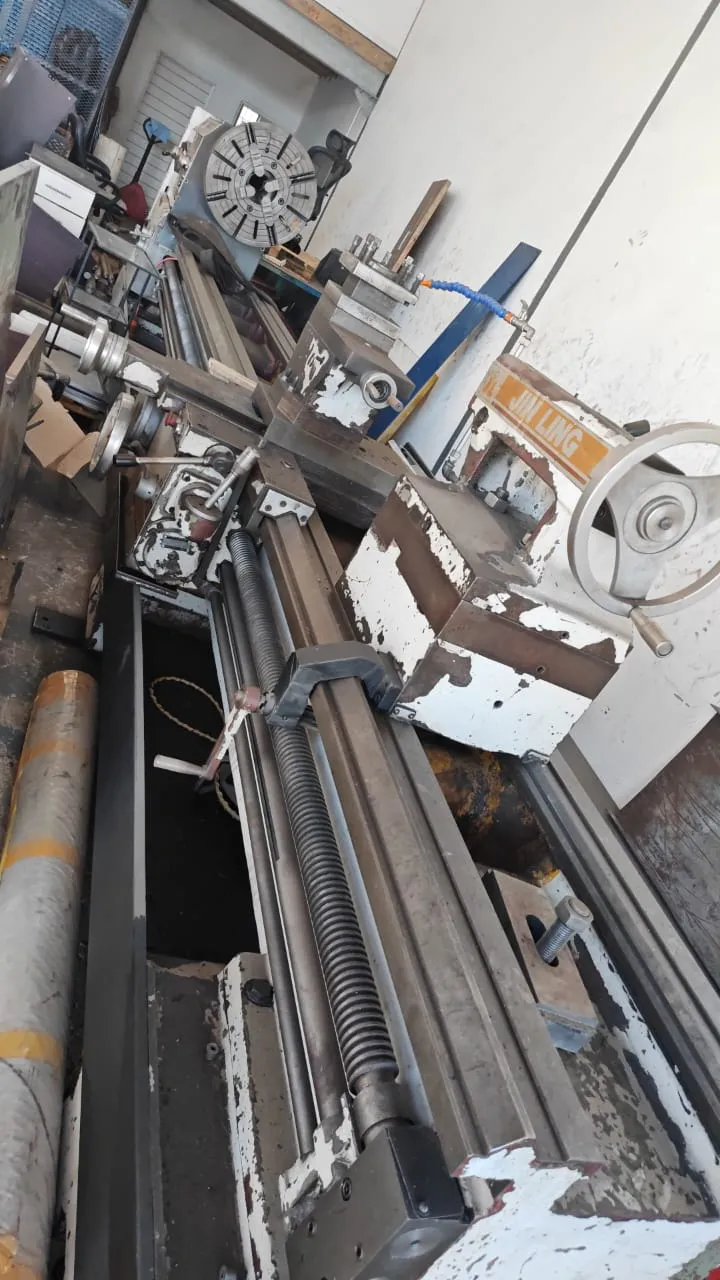

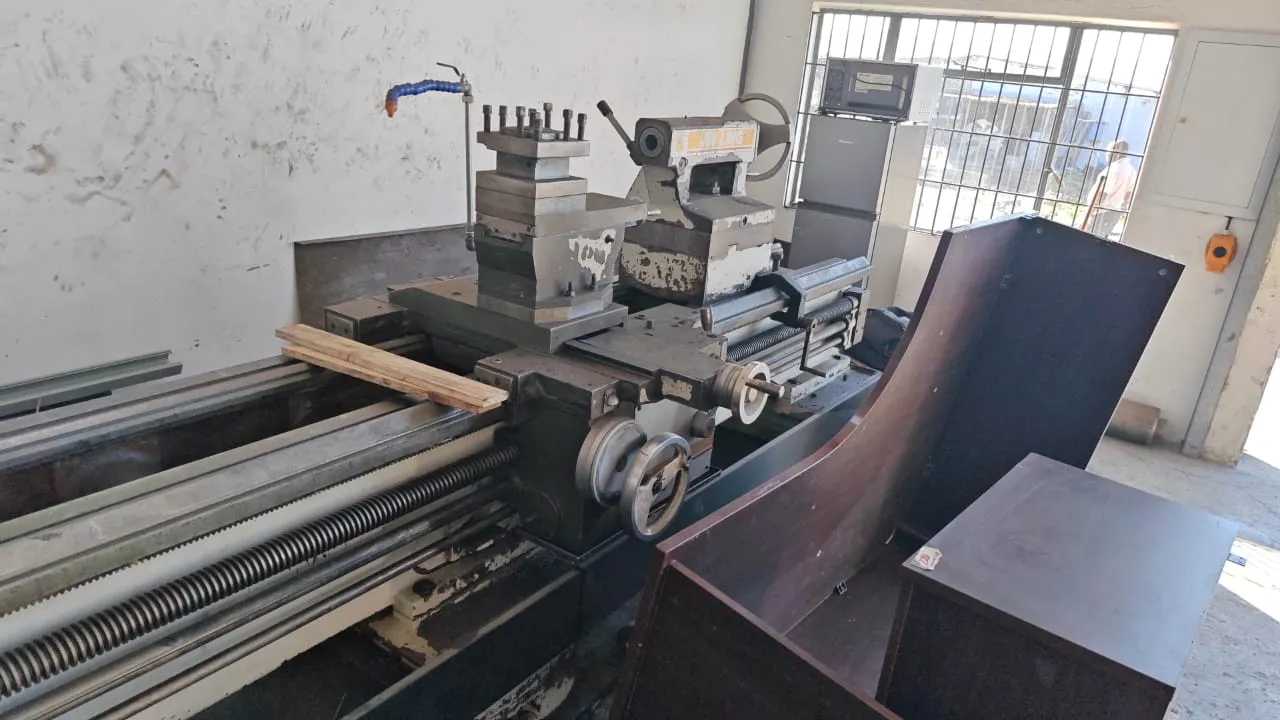

Type Heavy Duty Gap Bed Lathe

Max. Swing Over Bed 830 mm

Max. Swing Over Cross Slide 550 mm

Max. Swing in Gap ~1000 mm – 1090 mm (Depending on casting)

Effective Gap Length 300 mm

Distance Between Centers 1000 / 1500 / 2000 / 3000 / 4000 mm (Check specific bed length)

Bed Width 550 mm

Spindle Bore 105 mm (Standard) or 130 mm (Optional Heavy Duty)

Spindle Nose ISO C11 or D11 (Camlock)

Spindle Taper Metric 120 or 140

Spindle Speeds 10 – 800 RPM (18 Steps)

Longitudinal Feeds 0.06 – 24.3 mm/rev

Cross Feeds 0.025 – 12.15 mm/rev

Metric Threads 1 – 240 mm

Inch Threads 30 – 2 TPI

Tailstock Quill Diameter 100 mm

Tailstock Taper MT5 or MT6

Main Motor Power 11 kW (approx. 15 HP)

Approximate Weight 4,600 kg – 6,500 kg (Depending on DBC)
