Oerlikon MN2H Universal Milling Machine Price; R150,000 excl VAT

All Mech-Tech Products Are Engineered for Excellence, & Designed for Durability.
Loading...

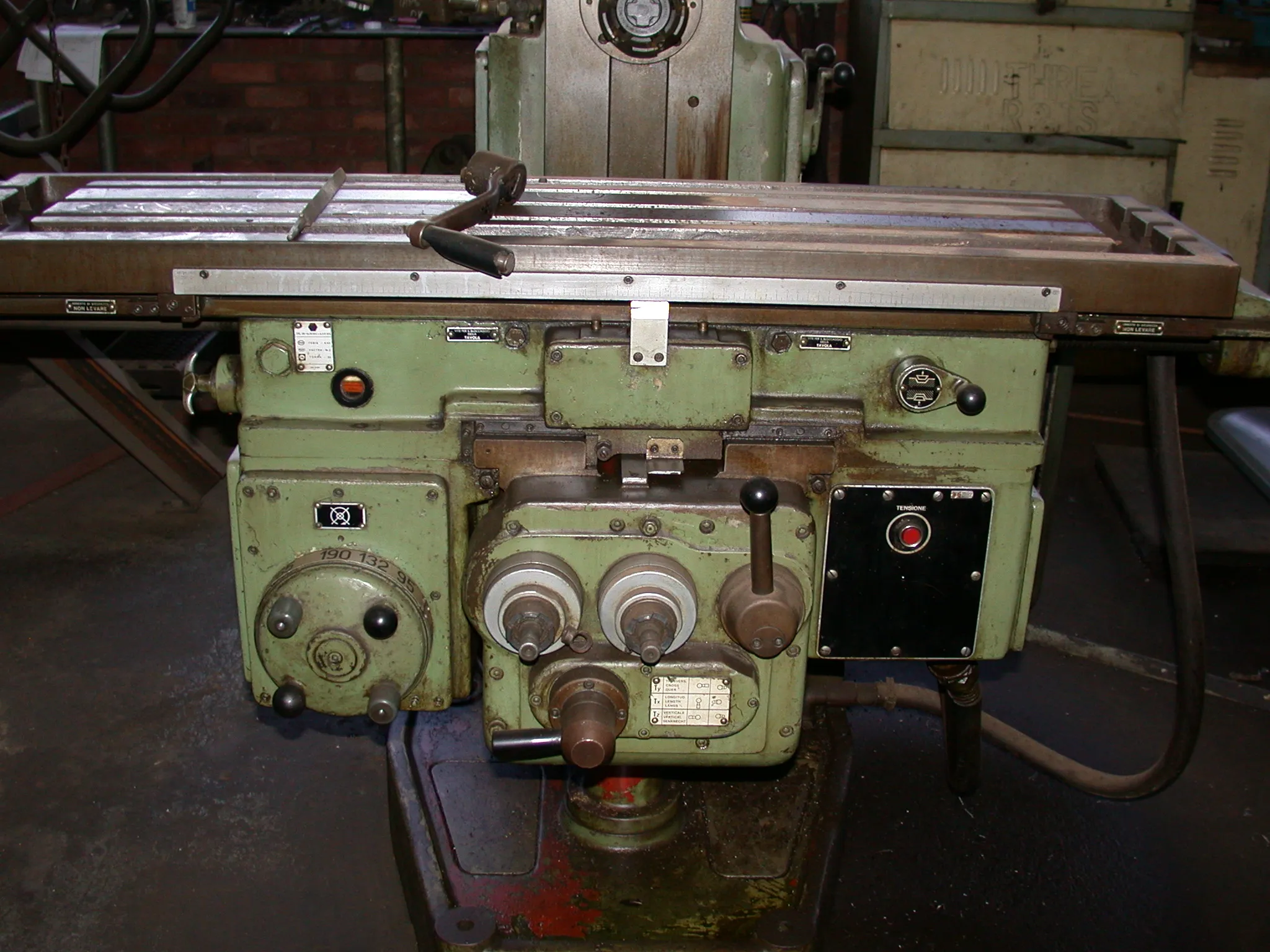

Oerlikon MN2H Universal Milling Machine Price; R150,000 excl VAT
Oerlikon MN2H Universal Milling Machine Price; R150,000 excl VAT - Image 2
Oerlikon MN2H Universal Milling Machine Price; R150,000 excl VAT - Image 3

Oerlikon MN2H Universal Milling Machine Price; R150,000 excl VAT

SKU: 8fc4b42ffc41 Category:

Parameter Value

Type Universal Toolroom Milling Machine
Table Size 1200 mm x 300 mm
Longitudinal Travel (X-Axis) 700 mm
Cross Travel (Y-Axis) 275 mm
Vertical Travel (Z-Axis) 400 mm
Spindle Taper ISO 40 (Standard)
Spindle Speeds 30 – 1400 RPM (Typically 12-18 steps)
Feeds (Longitudinal/Cross) 12 – 530 mm/min
Rapid Traverse Available (typically on X-axis)
Main Motor Power Approx. 4 kW (5.5 HP)
Approximate Weight 1,700 kg – 2,000 kg
Country of Origin Switzerland

Product Description

Parameter Value

Type Universal Toolroom Milling Machine
Table Size 1200 mm x 300 mm
Longitudinal Travel (X-Axis) 700 mm
Cross Travel (Y-Axis) 275 mm
Vertical Travel (Z-Axis) 400 mm
Spindle Taper ISO 40 (Standard)
Spindle Speeds 30 – 1400 RPM (Typically 12-18 steps)
Feeds (Longitudinal/Cross) 12 – 530 mm/min
Rapid Traverse Available (typically on X-axis)
Main Motor Power Approx. 4 kW (5.5 HP)
Approximate Weight 1,700 kg – 2,000 kg
Country of Origin Switzerland
