| Feeding type |
Manual feed |
|---|---|
| Cut height |
170 mm |
| Throat |
300 mm |
| Table size |
400 x 500 mm |
| Blade speed |
20-90 m/min |
| Speed adjustment |
Variable |
| Motor |
0.4 kw |
| Dimensions |
920 x 550 x 1680 mm |
| Weight |
260 kg |
| Model |

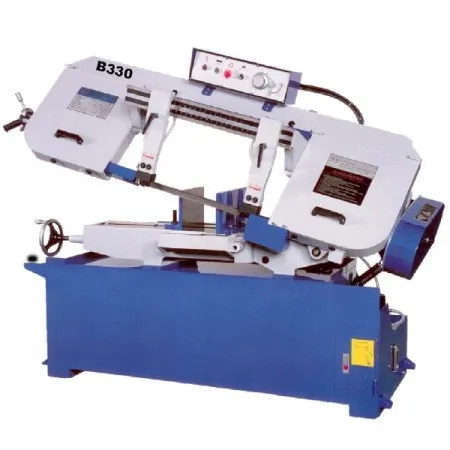

BS-330V/S |
|---|---|
| Cutting angle |
Positive angle only |
| Cutting capacity at 90 |
330 mm |
| Cutting capacity at 45 |
275 mm |
| Swivel angle |
+45 deg |
| Manual or semi-auto |
Manual or Semi-auto |
| Motor |
3 hp |
| Blade speed |
20-80 m/min |
| No. Blade speeds |
Variable |
| Blade size |
34 x 1.1 x 4100 mm |
| Cutting capacity |
500 mm |
|---|---|
| Blade speeds |
30-65 m/min |
| Blade speed control |
Variable (inverter) |
| Vice clamping |
Hydraulic |
| Blade size |
41 x 1.25 x 5450 mm |
| Motor |
4 kw |
| Dimensions (L x W x H) |
2650 x 1100 x 2000 mm |
| Cutting capacity |
400 mm |
|---|---|
| Blade speeds |
25-83 m/min |
| Blade speed control |
Variable (inverter) |
| Vice clamping |
Hydraulic |
| Blade size |
34 x 1.25 x 4650 mm |
| Motor |
3 / 4 kw |
| Dimensions (L x W x H) |
2400 x 1100 x 1730 mm |
| Cutting angle |
Dual angle |
|---|---|
| Cutting capacity at 90 |
460 mm |
| Cutting capacity at 45 |
460 mm |
| Cutting capacity at 60 |
300 mm |
| Swivel angle |
+60 -45 deg |
| Manual or semi-auto |
Semi-auto |
| Motor |
5 hp |
| Blade speed |
26-80 m/min |
| No. Blade speeds |
Variable |
| Blade size |
41 x 1.3 x 5330 mm |
| Feeding type |
Manual feed |
|---|---|
| Cut height |
340 mm |
| Throat |
600 mm |
| Table size |
660 x 700 mm |
| Blade speed |
20-500 m/min |
| Speed adjustment |
Variable |
| Motor |
1.5 kw |
| Dimensions |
1570 x 110 x 2140 mm |
| Weight |
900 kg |
kB 45 vertical bandsaw, 450mm throat depth with butt welder and blade grinder all built in.
