| Feed type | Manual |
|---|---|
| Blade diameter | 250 mm |
| Cutting capacity at 90 | 30 mm |
| Cutting capacity at 45 | 30 mm diameter |
| Motor | 1.5 hp |
| Blade speed | 45/90 rpm |
| No. Blade speeds | 2 Speed steps |
| Dimensions | 880 x 920 x 600 mm |
| Weight | 131 kg |
Reciprocating Power Saw
Cutting Capacity - 250mm (Round)
Cutting Capacity - 220x220mm (Square)
Blade Speed – 43,50,60,86,100,120 (Strokes/min)
Vice Clamping - Manual
Blade Size – 450x40x2.25mm
Main Motor – 3.2Kw
Coolant Motor - 90Watt
Weight - 600Kg
Features: Manual Vice, Hydraulic Lift, Coolant system and CE Standard Electrics
Reciprocating Power Saw
Cutting Capacity - 320mm (Round)
Cutting Capacity - 290x290mm (Square)
Blade Speed – 34,60,84 (Strokes/min)
Vice Clamping - Manual
Blade Size –600x50x2.5mm
Main Motor – 3.4Kw
Coolant Motor - 90Watt
Weight - 1100Kg
Features: Manual Vice, Hydraulic Lift, Coolant system and CE Standard Electrics
Reciprocating Power Saw
Cutting Capacity - 400mm (Round)
Cutting Capacity - 330x330mm (Square)
Blade Speed – 34,60,84 (Strokes/min)
Vice Clamping - Manual
Blade Size – 650x55x2.5mm
Main Motor – 4.4Kw
Coolant Motor - 90Watt
Weight - 1200kg
Features: Manual Vice, Hydraulic Lift, Coolant system and CE Standard Electrics
Reciprocating Power Saw
Cutting Capacity - 500mm (Round)
Cutting Capacity - 400x400mm (Square)
Blade Speed – 34,60,84 (Strokes/min)
Vice Clamping - Manual
Blade Size – 750x63x2.5mm
Main Motor – 4.4Kw
Coolant Motor - 90Watt
Weight - 1450Kg
Features: Manual Vice, Hydraulic Lift, Coolant system and CE Standard Electrics
Specifications

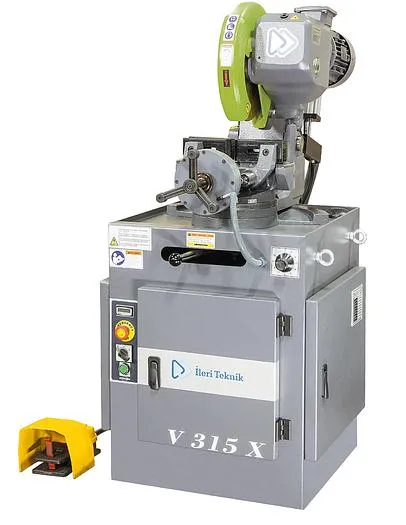

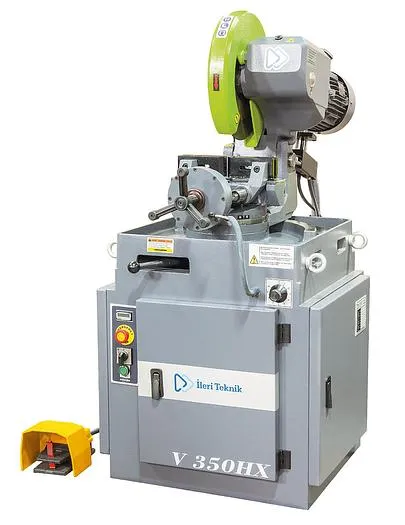

Semi-automatic saws have powered material clamping and controlled blade feed rate that
is initiated with a foot switch actuation, for fast cutting different size of metal pipes. A semi-automatic coldsaw usually has a foot switch start that initiates the cycle. The blade starts,
the powered vice clamps the workpiece and the cutting head feeds the blade through the material at a controlled rate.
Powered bow raise lifts the head after the piece has been cut.
