AMCO KJ180 Slant Bed CNC Lathe Price; R250,000 excl VAT

All Mech-Tech Products Are Engineered for Excellence, & Designed for Durability.
Loading...

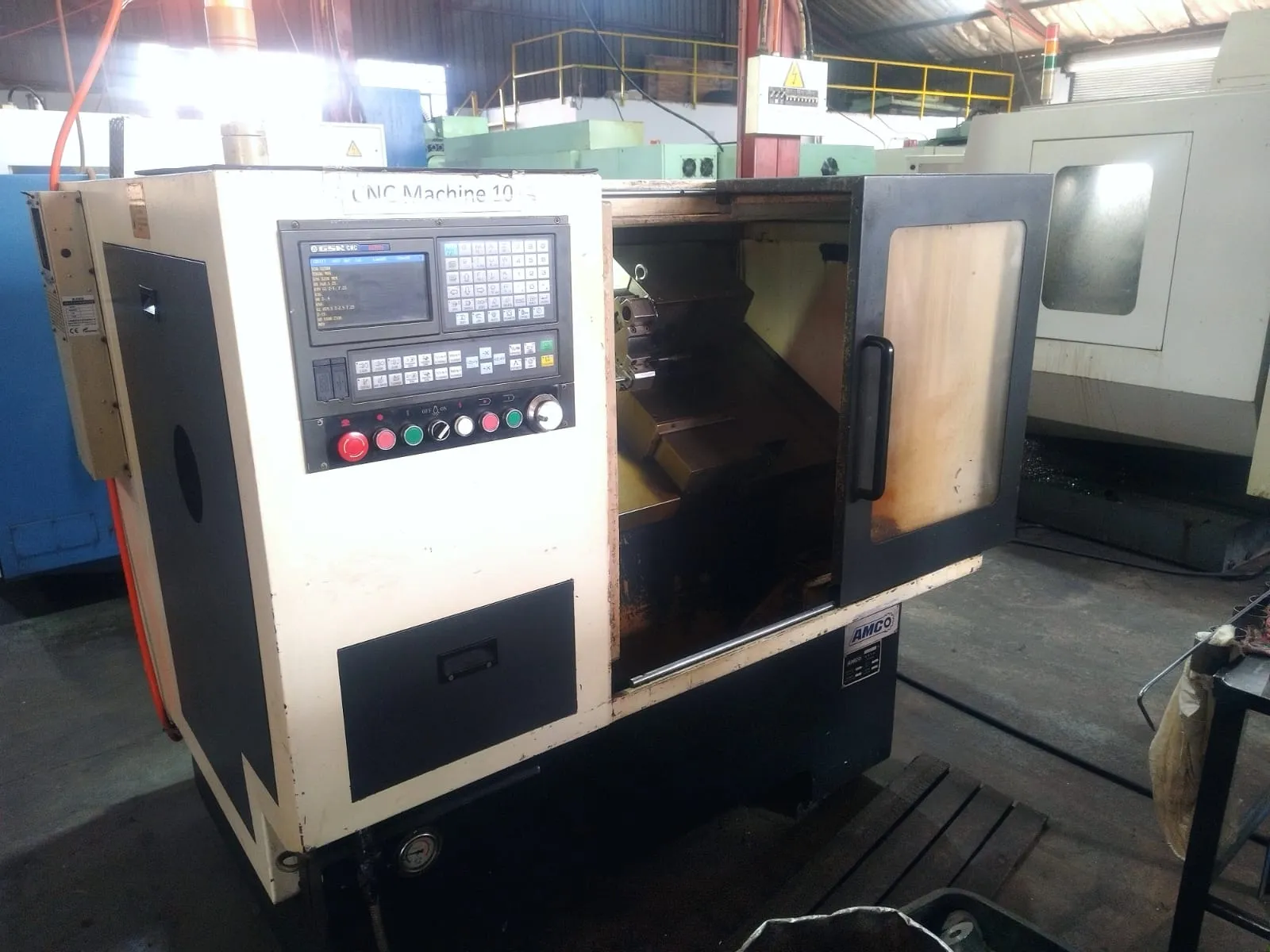

AMCO KJ180 Slant Bed CNC Lathe Price; R250,000 excl VAT
AMCO KJ180 Slant Bed CNC Lathe Price; R250,000 excl VAT - Image 2
AMCO KJ180 Slant Bed CNC Lathe Price; R250,000 excl VAT - Image 3
AMCO KJ180 Slant Bed CNC Lathe Price; R250,000 excl VAT - Image 4

AMCO KJ180 Slant Bed CNC Lathe Price; R250,000 excl VAT

SKU: c6dabbd6a694 Category:

Parameter Value

Type 45° Slant Bed CNC Lathe (Linear Guideways)
Max. Swing Over Bed 350 mm – 400 mm
Max. Swing Over Slide 140 mm – 160 mm
Max. Turning Diameter 180 mm (Standard)
Max. Turning Length ~180 mm – 200 mm (Short bed / Chucker style)
X-Axis Travel ~240 mm
Z-Axis Travel ~250 mm – 305 mm
Spindle Bore 38 mm – 48 mm
Bar Capacity Typically 25 mm – 35 mm (often uses 5C Collets or 6″ Chuck)
Spindle Speed 50 – 4000 RPM (Variable)
Rapid Traverse (X/Z) 20 m/min – 30 m/min
Motor Power 3.7 kW – 5.5 kW
Tooling System Gang Tool Plate (Standard) or 8-Station Turret (Optional)
Control System Typically Syntec, Fanuc 0i-TF, or GSK
Machine Weight Approx. 1,800 kg – 2,000 kg
Dimensions (LxWxH) Approx. 1600 x 1300 x 1650 mm

Product Description

Parameter Value

Type 45° Slant Bed CNC Lathe (Linear Guideways)
Max. Swing Over Bed 350 mm – 400 mm
Max. Swing Over Slide 140 mm – 160 mm
Max. Turning Diameter 180 mm (Standard)
Max. Turning Length ~180 mm – 200 mm (Short bed / Chucker style)
X-Axis Travel ~240 mm
Z-Axis Travel ~250 mm – 305 mm
Spindle Bore 38 mm – 48 mm
Bar Capacity Typically 25 mm – 35 mm (often uses 5C Collets or 6″ Chuck)
Spindle Speed 50 – 4000 RPM (Variable)
Rapid Traverse (X/Z) 20 m/min – 30 m/min
Motor Power 3.7 kW – 5.5 kW
Tooling System Gang Tool Plate (Standard) or 8-Station Turret (Optional)
Control System Typically Syntec, Fanuc 0i-TF, or GSK
Machine Weight Approx. 1,800 kg – 2,000 kg
Dimensions (LxWxH) Approx. 1600 x 1300 x 1650 mm
