Parameter Value
.webp)
Chuck Size 533.4 mm
.webp)
EMAIL: az.oc.hcet-hcem@selas
Used cnc lathe Goodway BF-65 gang tooler with barfeeder and collet chuck.
EMAIL: az.oc.hcet-hcem@selas
Specifications:
Control: Fanuc Oi-TC CNC Control
Max Swing Over Bed: 18"
Max Turning Diameter: 11.1"
Max Turning Length: 15"
Spindle Speeds: 1-6000 RPM Max
Spindle Drive: 17.4 HP
Spindle Nose: A2-5
Max Bar Capacity: 1.77"
Turret Capacity: 12 Stations
Turret Index Time: 0.73 Seconds (Adjacent Station)
Turret Travels (X,Z): 9" X / 16" Z
Rapid Traverse Rate (X/Z): 1,181 IPM
Tailstock?: Programmable Tailstock
Tailstock Quill Diameter / Taper: MT No. 4
KIA Turn 21 CNC Lathe
Fanuc OT Control
Swing Over Bed 550mm
Max Turning Length 500mm
X Axis Travel 210mm
Z Axis Travel 430mm
10 Station Turret
Tailstock
200mm 3 Jaw Chuck
Swarf Conveyor
Technical data | |
Manufacturer | LEADWELL |
Model | LT20 |
Control unit | Fanuc 0T |
Capacity | |
Max. Swing | 670 mm. |
Swing over cross slide | 440 mm. |
Max. turning diameter | 450 mm. |
Max. turning length | 640 mm. |
Bar work capacity | 78 mm. |
Max. workpiece weight (with tailstock) | 175 Kgs. |
X – Z axis travel | 250 / 640 mm. |
Spindle speed range | 35 – 3500 rpm. |
Chuck size | 240 mm. |
Type of spindle nose | A2-8 |
Through spindle hole diameter | 89 mm. |
Spindle motor power | 15 KW. |
Max. spindle speed | 437 rpm. |
Turret | |
Número de herramientas / Turret stations | 12 |
Shank height for square tool | 40 mm. |
Turret indexing time (one tool) | 0.6 sec. |
Feedrates | |
X axis rapid traverse | 20.000 mm/min. |
Z axis rapid traverse | 24.000 mm/min. |
Feed per revolution | 0,01 – 500 mm/min |
Weight and dimensions | |
Machine weight | 5.000 Kg. |
Machine dimensions | 3,14 x 1,73 x 1,98 m.. |
EMAIL: az.oc.hcet-hcem@selas
Capacity:
Max. Swing diameter: 580mm
Max. turning diameter: 330mm
Max. turning length: 1000mm
Distance between centres: 1100mm
Travel:
X-axis: 185mm
Z-axis: 940mm
Spindle:
Max speed: 3000rpm
Spindle Nose: A2-8
Bar capacity: 75mr
Turret: (Optional)
Type: 12 Station
OD Tool: 25mm
ID Tool: Ø 32mm
Feed Rate:
X-axis: 15m/min
Z-axis: 15m/min
Hydraulic Tailstock: (Optional)
Quill diameter: 75mm
Quill taper: MT#4
Travel: 900mm
Quill travel: 80mm
Machine Dimensions:
Machine weight 5400kgs
L x W x H 3400x2300x1900 mm
Price: R700 000 excl
EMAIL: az.oc.hcet-hcem@selas

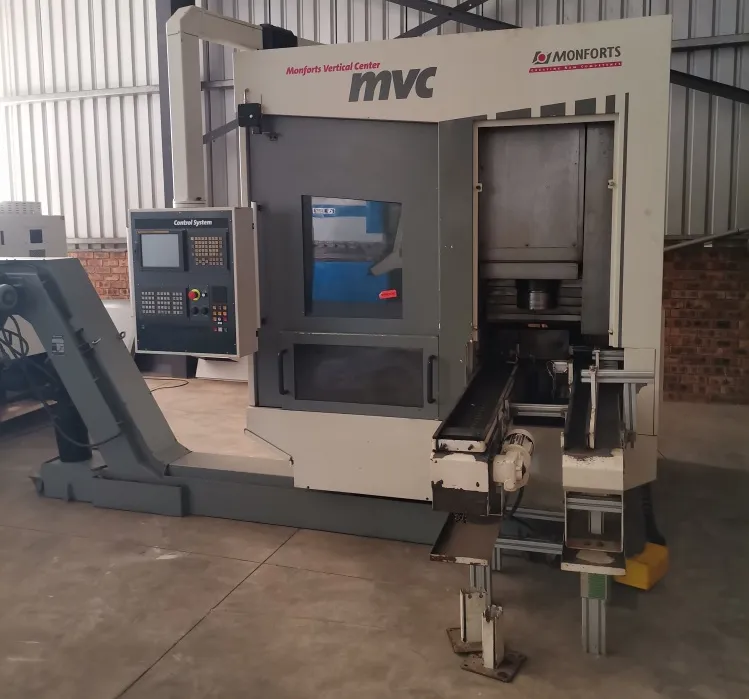

Monfort vertical CNC lathe with auto load and unload
FANUC Series 21i-TB
12 Station tool turret
10” chuck
