Technical data

Manufacturer

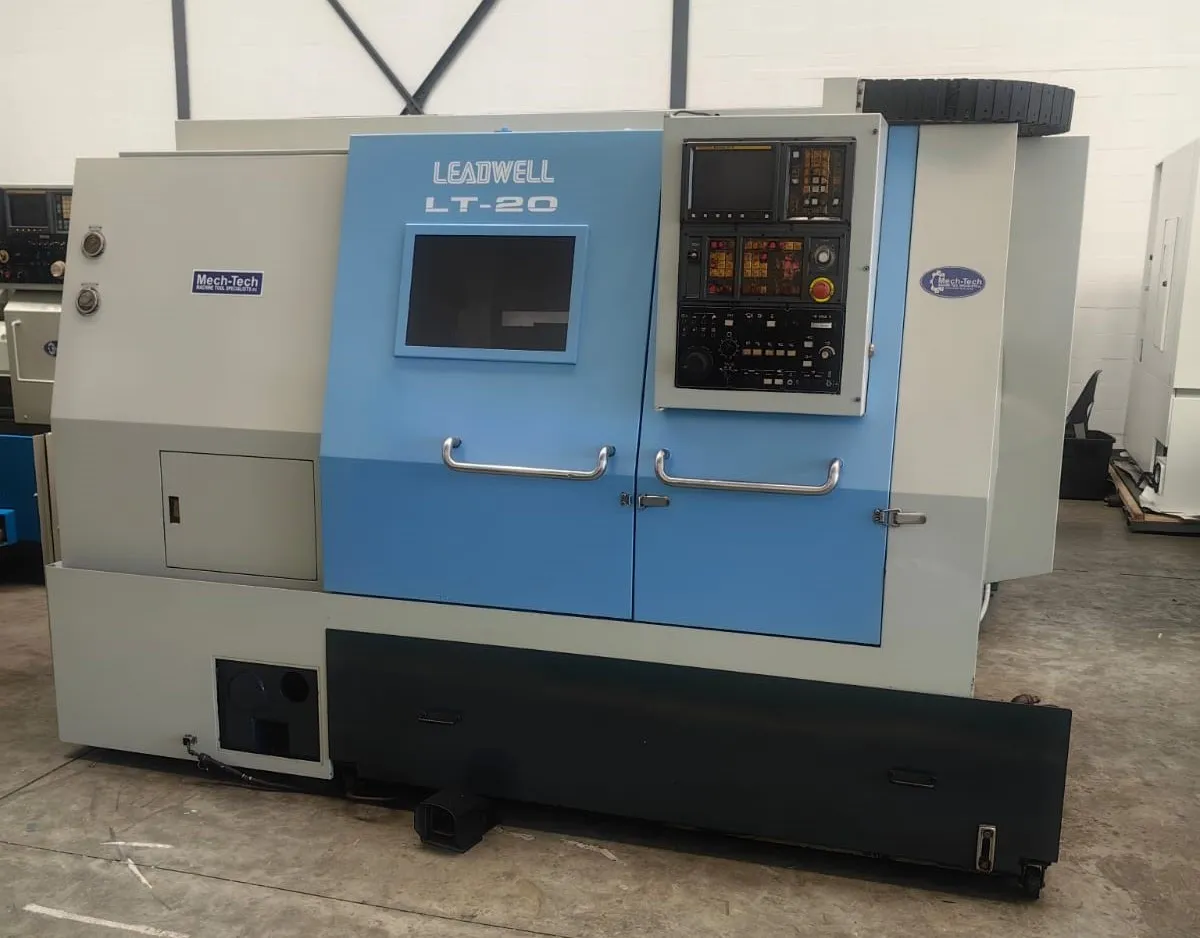

LEADWELL

Model

LT20

Control unit

Fanuc 0T

Capacity

Max. Swing

670 mm.

Swing over cross slide

440 mm.

Max. turning diameter

450 mm.

Max. turning length

640 mm.

Bar work capacity

78 mm.

Max. workpiece weight (with tailstock)

175 Kgs.

X – Z axis travel

250 / 640 mm.

Spindle speed range

35 – 3500 rpm.

Chuck size

240 mm.

Type of spindle nose

A2-8

Through spindle hole diameter

89 mm.

Spindle motor power

15 KW.

Max. spindle speed

437 rpm.

Turret

Número de herramientas / Turret stations

12

Shank height for square tool

40 mm.

Turret indexing time (one tool)

0.6 sec.

Feedrates

X axis rapid traverse

20.000 mm/min.

Z axis rapid traverse

24.000 mm/min.

Feed per revolution

0,01 – 500 mm/min

Weight and dimensions

Machine weight

5.000 Kg.

Machine dimensions

3,14 x 1,73 x 1,98 m..
