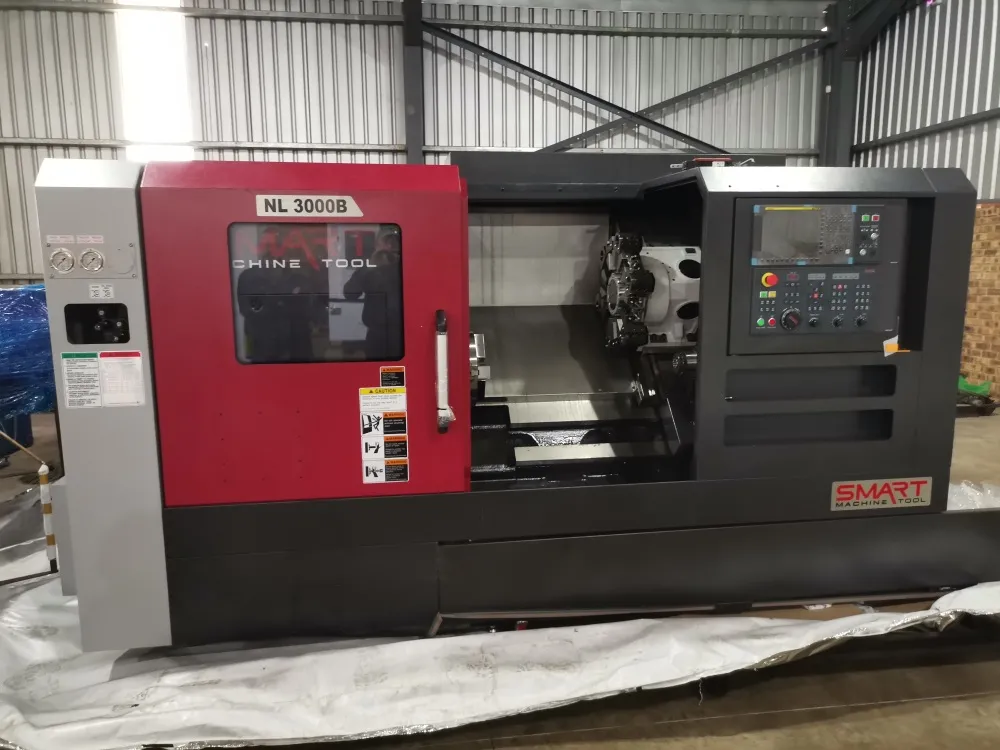

One only NEW SMART NL3000B SLANT BED CNC LATHE WITH A FANUC OiTF PLUS CONTROL (MADE IN KOREA) with the following specifications:
Swing over bed | 700m |
Swing over Cross Slide | 510mm |
Max. turning diameter | 480mm |
Max. turning length | 750mm |
X axis travel | 270mm |
Z axis travel | 770mm |
Spindle: | |
Spindle Nose | ISO (DIN) A2-11 |
Spindle Bore | 115mm |
Max. bar capacity | 103mm |
Max. spindle speed | 2800rpm |
Spindle motor | 22/35Kw |
Hydraulic chuck size | 12″ 3 Jaw |
Turret: | |
No of Tools | Hydraulic 12 Tools |
Square tool holder | 25 x 25mm |
Max. boring bar diameter | 50mm |
Tailstock: | |
Travel | 1072mm |
Quill taper | 4MT (built in) |
Quill diameter | 110mm |
Rapid feed rate – X – Axis | 24M / min |
Rapid feed rate – Z – Axis | 30M / min |
Required Floor Space | 3708mm x 1727mm |
Machine weight | 5700Kg’s |
Control Fanuc OiTF Plus
Standard Control Equipment supplied with the machine:
- Hydraulic Turret 12 station
- Foot pedal for chuck
- Soft Jaw x 1 set
- Heat exchanger for electric cabinet
- Work light
- Chip conveyor with Bucket
- High powered coolant system
- Automatic lube system
- 1 x Facing Holder
- 5 x ID Holder
- 1 X Udrill
- 9 x Boring Holders – 1 x 10mm, 1 x 12mm, 1 x 16mm, 2 x 20mm, 2 x 25mm, 2 x 32mm
- 2 x Drill Holders – 1 x MT3, 1 x MT4
- Toolbox & tools
- Operational manual
- Barfeeder Interface
