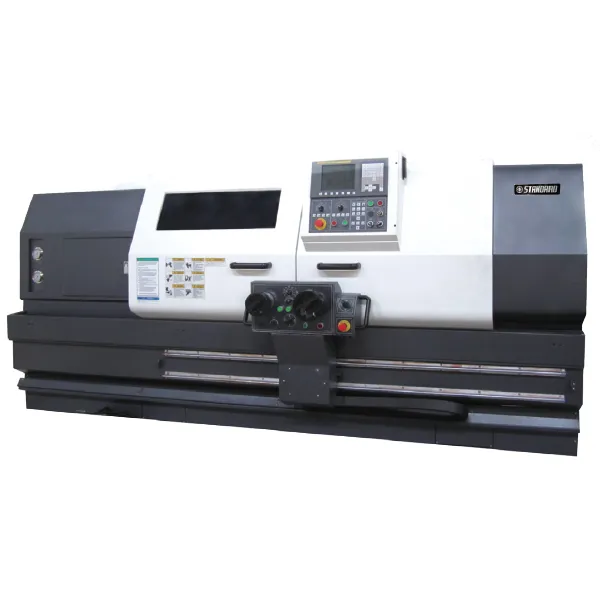

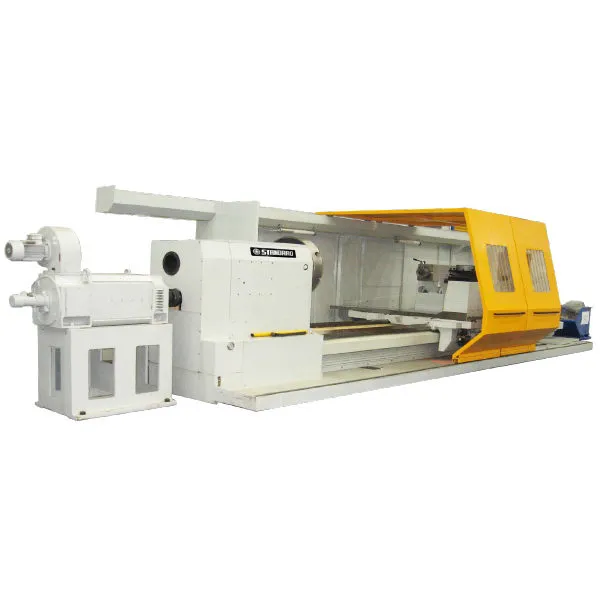

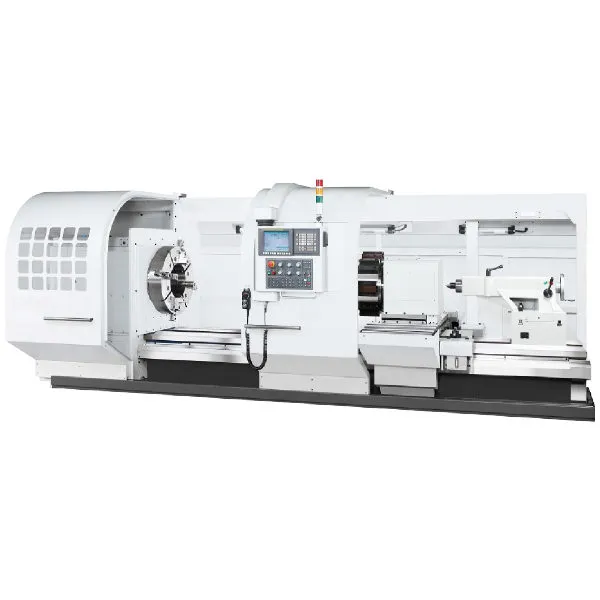

| Swing over bed | 510 mm |
|---|---|
| Swing over saddle | 290 mm |
| Spindle bore | 82 mm |
| Between centres | 1000 / 1500 / 2000 mm |
| Turning lengths | 920 / 1420 / 1920 mm |
| Width of bed | 390 mm |
| Spindle Speeds | 35-2500 rpm |
| Tailstock taper | MT5 |
| Motor | 7.5 kw |
| Spindle bore | Up to 700 mm |
|---|---|
| Swing over bed | 1500 mm |
| Swing over carriage | 1100 mm |
| Turning length | 2-20 m |
| Load between centers | 3-40 ton |
| Bed width | Bed design varies with machine design |
| Spindle Speed | 1~200, 0.5~100, 0.4~80, 0.2~40 rpm |
| Spindle motor | 7.5-110 kw |
| Spindle bore | Up to 700 mm |
|---|---|
| Swing over bed | 1500 mm |
| Swing over carriage | 1100 mm |
| Turning length | 2-20 m |
| Load between centers | 3-40 ton |
| Bed width | Bed design varies with machine design |
| Spindle Speed | 1~200, 0.5~100, 0.4~80, 0.2~40 rpm |
| Spindle motor | 7.5-110 kw |
4.webp)
Capacity: | |
Swing over bed | 400mm |
Swing over cross slide | 230mm |
Max. turning length | 300mm |
Slant bed degree | 45 degree |
X axis travel | 200mm |
Spindle: | |
Chuck type | Collect Chuck |
Spindle Bar Capacity | 42mm |
Spindle speed | 4000 rpm |
Spindle motor | AC Servo 7.5Kw |
Turret:: | |
Turret type | Servo Turret |
Tool number | 12 Tools |
Boring bar dia. | 25 |
Square tool holder | 25 x 25mm |
Axes Motors: | |
X axis Sero motor | Yaskawa AC Servo 1.5kw(B) |
Z axis Sero motor | Yaskawa AC Servo 1.5kw |
Rapid Traverse Rate | 30M/Min |
Accuracy: | |
Positioning accuracy | 0.001mm |
Coolant System: | |
Tank capacity | 140 L |
Max. coolant pressure | 5 Bar |
Max. coolant flow | 75 L/min |
Lubrication System: | |
Tank capacity | 2 L |
Pump pressure | 15 kgf/cm2 |
Machine size: | |
Length with chip conveyor | 3350mm |
Machine Width | 1650 mm |
Machine Height | 1700 mm |
Machine Weight | 3950 kg |
| Model | ESA-220 |
|---|---|
| Swing over bed | 360 mm |
| Swing over saddle | 230 mm |
| Turning diameter | 220 mm |
| Turning length | 330 mm |
| Rapid feeds (X, Z) | 15, 12 mm/min |
| Spindle bore (Thru HYD chuck) | 52 mm |
| Spindle Speed | 45-4500 rpm |
| Tailstock taper | MT4 |
| Main motor | 5.5 kw |
| Tool turret, no of tools | 8 tools |
| Model | ESB-800 |
|---|---|
| Swing over bed | 900 mm |
| Swing over saddle | 680 mm |
| Turning diameter | 800 mm |
| Turning length | 1500-3000 mm |
| Radip feeds (X, Z) | 10, 10 mm/min |
| Spindle bore (Thru HYD chuck) | 115 mm |
| Spindle Speed | 20-1200 rpm |
| Tailstock taper | MT6 |
| Main motor | 30/37 kw |
| Tool turret, no of tools | 12 tools |
| Swing over bed | 500 mm |
|---|---|
| Swing over saddle | 280 mm |
| Turning diameter | 450 mm |
| Turning length | 650 mm |
| Chuck diameter | 250 mm |
| Spindle Speed | 3000 rpm |
| Travel (X, Z) | 250 x 680 mm |
| Radip speed (X, Z) | 12 / 16 m/min |
| Spindle motor | 11/15 kw |
| Tool changer | 8/12 tools |

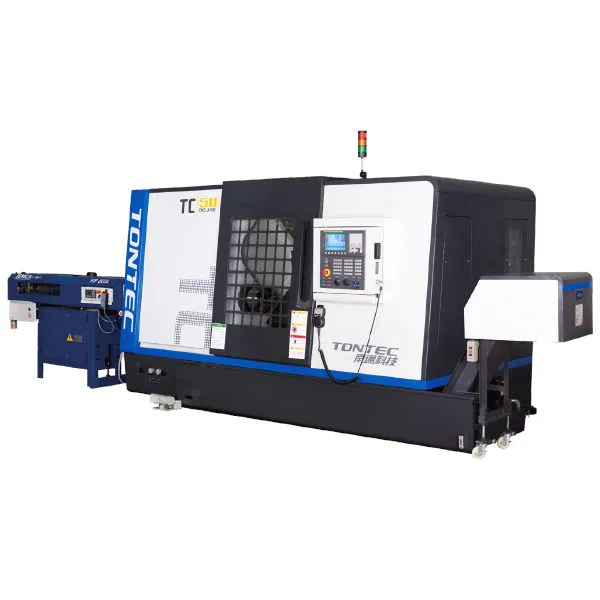

| Swing over bed | 774 mm |
|---|---|
| Swing over saddle | 236 mm |
| Turning diameter | 460 mm |
| Turning length | 560 mm |
| Chuck diameter | 254 mm |
| Spindle Speed | 3000 rpm |
| Travel (X, Z) | 280 x 700 mm |
| Radip speed (X, Z) | 18/24 m/min |
| Spindle motor | 11/15 kw |
| Tool changer | 12 tools (live tooling) |
| Milling cutter | 5000 rpm |
| Milling motor | 3.75 kw |

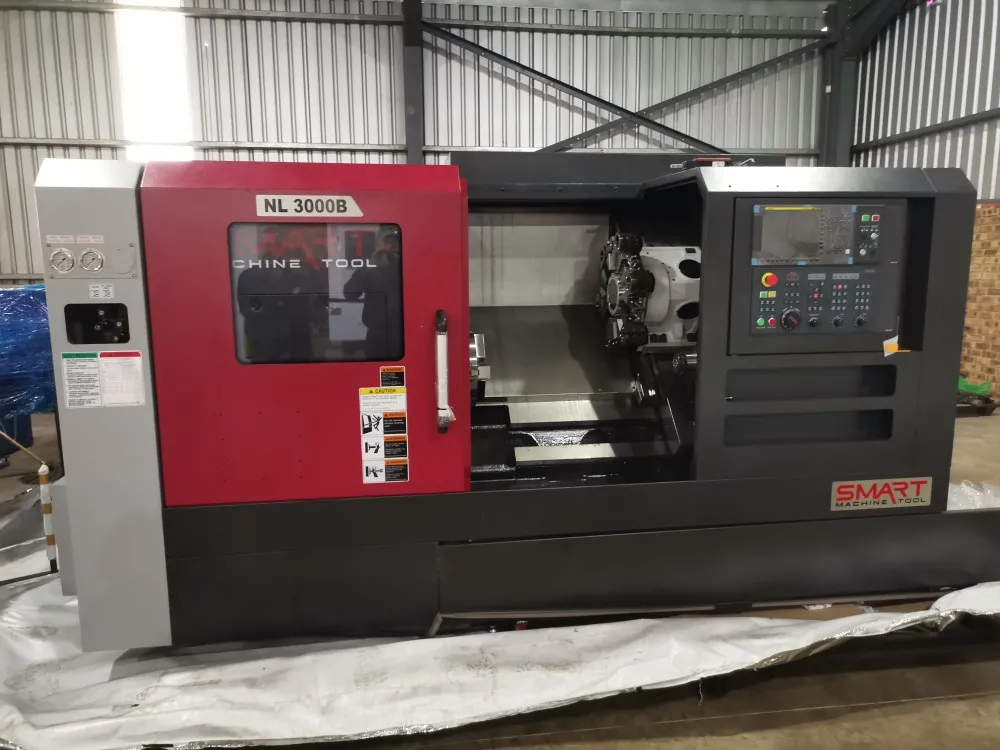

One only NEW SMART NL3000B SLANT BED CNC LATHE WITH A FANUC OiTF PLUS CONTROL (MADE IN KOREA) with the following specifications:
Swing over bed | 700m |
Swing over Cross Slide | 510mm |
Max. turning diameter | 480mm |
Max. turning length | 750mm |
X axis travel | 270mm |
Z axis travel | 770mm |
Spindle: | |
Spindle Nose | ISO (DIN) A2-11 |
Spindle Bore | 115mm |
Max. bar capacity | 103mm |
Max. spindle speed | 2800rpm |
Spindle motor | 22/35Kw |
Hydraulic chuck size | 12" 3 Jaw |
Turret: | |
No of Tools | Hydraulic 12 Tools |
Square tool holder | 25 x 25mm |
Max. boring bar diameter | 50mm |
Tailstock: | |
Travel | 1072mm |
Quill taper | 4MT (built in) |
Quill diameter | 110mm |
Rapid feed rate – X - Axis | 24M / min |
Rapid feed rate – Z – Axis | 30M / min |
Required Floor Space | 3708mm x 1727mm |
Machine weight | 5700Kg’s |
Control Fanuc OiTF Plus
Standard Control Equipment supplied with the machine:
SMART NL2000 SLANT BED CNC LATHE WITH A FANUC OiTF PLUS CONTROL (MADE IN KOREA)
Swing over bed | 570m |
Swing over Cross Slide | 370mm |
Max. turning diameter | 391mm |
Max. turning length | 560mm |
X axis travel | 230mm |
Z axis travel | 580mm |
Spindle: | |
Spindle Nose | ISO (DIN) A2-6 |
Spindle Bore | 76mm |
Max. bar capacity | 67mm |
Max. spindle speed | 4500rpm |
Spindle motor | 11/18Kw |
Hydraulic chuck size | 8" 3 Jaw |
Turret: | |
No of Tools | Hydraulic 12 Tools |
Square tool holder | 25 x 25mm |
Max. boring bar diameter | 40mm |
Tailstock: | |
Travel | 450mm |
Quill taper | 4MT |
Quill diameter | 80mm |
Rapid feed rate – X - Axis | 24M / min |
Rapid feed rate – Z – Axis | 30M / min |
Machine Dimensions | 2793mm x 1551mm x 1902mm |
Machine weight | 3900Kg’s |
Control Fanuc OiTF Plus
Standard Control Equipment supplied with the machine:
