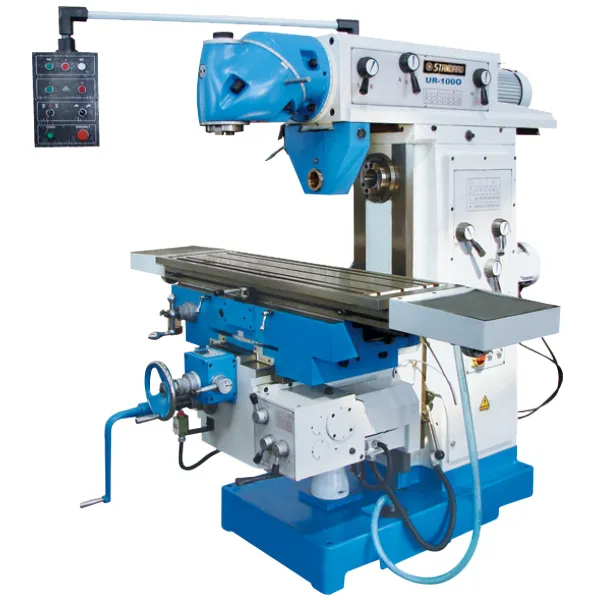

UR 1000 KNEE & RAM TYPE UNIVERSAL MILLING MACHINE – ISO 40

All Mech-Tech Products Are Engineered for Excellence, & Designed for Durability.
Loading...
UR 1000 KNEE & RAM TYPE UNIVERSAL MILLING MACHINE - ISO 40

UR 1000 KNEE & RAM TYPE UNIVERSAL MILLING MACHINE – ISO 40

SKU: 56d6b4b0c95e Category:
Table size

1320 x 320 mm

X table travel

1000 mm

Y table travel

300 mm

Z table travel

500 mm

Spindle taper

ISO40

Spindle speeds

45-1660 rpm (vertical)
40-1300 rpm (horizontal)

Spindle to table

100-600 mm (vertical)
0-440 mm (horizontal)

Table swivel

None

Ram travel

500 mm

Main motor

2.3 kw

Dimension (L x W x H)

2020 x 1710 x 1994 mm

Weight

2100 kg

Product Description

Table size

1320 x 320 mm

X table travel

1000 mm

Y table travel

300 mm

Z table travel

500 mm

Spindle taper

ISO40

Spindle speeds

45-1660 rpm (vertical)
40-1300 rpm (horizontal)

Spindle to table

100-600 mm (vertical)
0-440 mm (horizontal)

Table swivel

None

Ram travel

500 mm

Main motor

2.3 kw

Dimension (L x W x H)

2020 x 1710 x 1994 mm

Weight

2100 kg
