| Table width | 1250 mm |
|---|---|
| X travel (table length) | 1600-3000 mm |
| Y travel | 1250 mm |
| Z travel | 500 mm |
| Load on table | 2-2.4 ton |
| Distance between columns | 1600 mm |
| Spindle to table | 150-650 mm |
| Spindle taper | BT50 |
| Spindle motor | 12 kw |
| Spindle speeds | 10-4000 rpm |
| Weight | 10-16 ton |
| Table width | 1600 mm |
|---|---|
| X travel (table length) | 3200-6000 mm |
| Y travel | 2000 mm |
| Z travel | 1000 mm |
| Load on table | 8+ ton |
| Distance between columns | 2100 mm |
| Spindle to table | 200-1200 mm |
| Spindle taper | BT50 |
| Spindle motor | 15/18.5 kw |
| Spindle speeds | 10-3200 rpm |
| Weight | 25-45 ton |
| X, Y, Z-Axis | 800 x 500 x 500 mm |
|---|---|
| Table Length / Width | 1000 x 5000 mm |
| Table Loading Capacity | 400 kg |
| Servo Motor Speed for X, Y, Z | 3000 rpm |
| Tool Change Type | Disc Manipulator |
| Control | Fanuc-0iMF |
GMC-series bridge type CNC mills
Wide range of sizes and purposes:
TONEC GMC-30
| Table size (Width) | 3000 mm |
|---|---|
| Table size (Length) | 6000-12 000 mm |
| X travel | 6500-12 500 mm |
| Y travel | 3800 mm |
| Z travel | 1000 (1250) mm |
| Load on table | 2000 kg/m² |
| Distance between columns | 3500 mm |
| Spindle to table | 150-1150 mm |
| Spindle taper | BT50 |
| Spindle motor | 11-30 kw |
| Spindle speeds (r/min) | Depends on machine purpose |
| Weight | 120-180 ton |
MCH-Series Heavy Duty HMC: Designed for performance
| Machine layout and travel axis | Fixed table |
|---|---|
| Table size (W x L) | 630 x 630 mm |
| Travels (X, Y, Z) | 1000 x 740 x 800 mm |
| Accuracy | 0.01 mm |
| Repeatable accuracy | 0.006 mm |
| Spindle to table | 60-800 mm |
| Spindle speed | BT40 – 8000 taper/rpm |
| Spindle motor (cont/30min) | 11/15 kw |
| Rapid feed (X, Y, Z) | 32 m/min |
| Cutting feeds | 10 m/min |
| Tool change | 20 tools |
| Table size (W x L) | 620 x 1220 mm |
|---|---|
| Travels (X, Y, Z) | 1200 x 600 x 600 mm |
| Spindle speed | 6000-10 000 rpm |
| Spindle taper | BT40 or BT50 |
| Spindle motor (cont/30min) | 7.5/11 kw |
| Rapid feed (X, Y, Z) | 24-30 m/min |
| Tool change | 24 tools (arm or disc) |
| Load on table | 1000 kg |
| Dimensions (L x W x H) | 3250 x 2500 x 2600 mm |
| Weight | 8.1 ton |

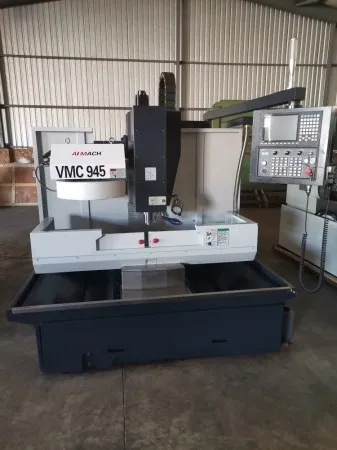

Table size 1450 x 400mm
Table T Slot 18mm x 3mm x 100mm
Maximum Table load 200Kg’s
Table travel (X, Y, Z) 900mm / 450mm / 500mm
Distance between Spindle nose and Table 50 - 550mm
Spindle type and diameter BT40 / 120mm
Spindle servo motor 7.5Kw
Spindle speed 8000Rpm
Maximum Tool diameter 80mm
Maximum Tool length - weight 200mm / 7Kg’s
Tool Changing time (arm type) 1.6sn
Rapid feed (X, Y, Z) 15 / 15 / 12mt / min
Cutting speed 8mt / min
Weight 3000Kg’s
Tool Changer Umbrella Type
| Table size (W x L) | 600 x 1100 mm |
|---|---|
| Travels (X, Y, Z) | 900 x 600 x 600 mm |
| Spindle speed | 6000-10 000 rpm |
| Spindle taper | BT40 |
| Spindle motor (cont/30min) | 7.5/11 kw |
| Rapid feed (X, Y, Z) | 36-48 m/min |
| Tool change | 20 tool (arm or disc) |
| Load on table | 800 kg |
| Dimensions (L x W x H) | 2800 x 2200 x 2600 mm |
| Weight | 5.4 ton |

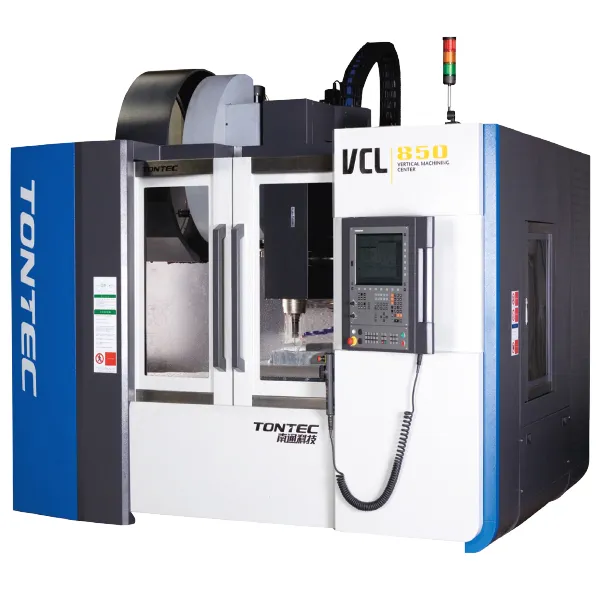

VCL-series: Extra high performance
Designed for extra high precision work repeatability of 0.005mm
VMCL-series: High performance
Designed to balance performance and consistancy

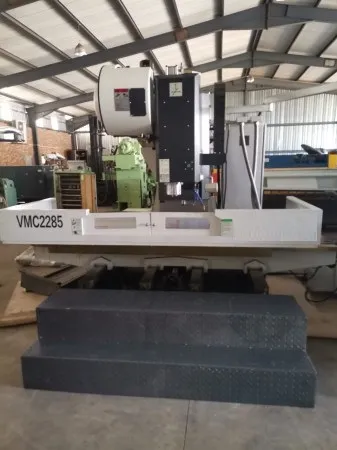

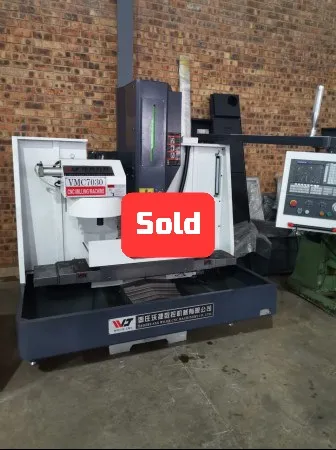

VMC-series: Heavy duty high performance
Designed to balance performance and consistancy on heavy jobs
| Table size (W x L) | 550 x 1000 mm |
|---|---|
| Travels (X, Y, Z) | 850 x 550 x 540 mm |
| Spindle speed | 8000-12 000 rpm |
| Spindle taper | BT40 |
| Spindle motor (cont/30min) | 5.5/7.5 kw |
| Rapid feed (X, Y, Z) | 36 m/min |
| Tool change | 24 tools |
| Tool change time | 1.4 sec |
| Weight | 7 ton |
