Lathes

Lathes

6240×1000mm GAP BED LATHE

R 120 000.00 excl.

Specifications 6240×1000mm (40")

Swing over bed Φ400mm(16")

Swing over cross slide Φ250mm(10")

Swing in gap(D×W) 520mm×100mm

Height of center 200mm(8")

Distance between centers 1015mm(40")

Width of bed 218mm(9")

Max. section of cutting tool 20mm×20mm(3/4"×3/4")

Total travel of cross slide 230mm(10")

Total travel of top slide 120mm(5")

Spindle bore 52mm(2")

Spindle nose D1-5

Spindle Morse taper in nose in sleeve MT6/MT4

Spindle speeds number 2×9 (18 steps)

Spindle speeds range 65-1800rpm

Leadscrew diameter&thread 24mm×4 T.P.I or pitch 6mm

Threads imperial pitches 4-60 T.P.I

Threads metric pitches 0.4-7mm

Longitudinal feeds(imperial/metric) 0.0527-1.2912mm

Cross feeds(imperial/metric) 0.011-0.276mm

Total travel of tailstock quill 110mm(4")

Tails stock quill Φ52mm(2")

Taper tailstock quill MT4

Main motor 3 Phase/380v

Spindle drive motor 2HP

Coolant pump motor 4/75HP(40W)

Split pkg: 1940mm×890mm×1045mm

INCLUDES

• Work Lamp

• 3 Jaw chuck

• 4 Jaw chuck

• Fixed and traveling steadies

• Splash guard

• Oil gun

• Service tools

• Coolant system

R1,00

Lathes

C0636A x 1000mm Lathe 220 OR 380 VOLT EX-STOCK

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

R1,00

C0636A x 1000mm Lathe 220 OR 380 VOLT EX-STOCK

Lathes

C6241 X 1000MM

Swing over bed	410 mm
Swing over saddle	255 mm
Swing in gap	580 mm
Length of gap	250 mm
Distance between centers	1000 mm
Width of bed	250 mm
Spindle bore / fitting	52 mm / D1-6
Spindle Speeds	45-1800 rpm
Top / cross slide travel	102 / 210 mm
Metric threads	39 kinds 0.2-14 mm
Inch threads	45 kinds 2-72 TPI
Diametrical Pitches	21 kinds 44 dp
Module Pitches	18 kinds 0.3-3.5 mp
Tailstock travel	120 mm
Tailstock taper	4 mt
Main motor	3.3 kw
Dimension (L x W x H)	1940 x 850 x 1300 mm
Weight	1600 kg

R1,00

Lathes

C6246 X 1500 LATHE EX-STOCK

Swing over bed	460 mm
Swing over saddle	270 mm
Swing in gap	690 mm
Length of gap	165 mm
Distance between centers	1000 mm (Option: 1500 + 2000)
Width of bed	300 mm
Spindle bore / fitting	58 mm / D1-6
Spindle Speeds	25-2000 rpm
Top / cross slide travel	128 / 285 mm
Metric threads	41 kinds 0.1-14 mm
Inch threads	60 kinds 2-112 TPI
Diametrical Pitches	50 kinds 4-112 dp
Module Pitches	34 kinds 0.1-7 mp
Tailstock travel	128 mm
Tailstock taper	4 mt
Main motor	5.5 kw
Dimension (L x W x H)	2200 x 1080 x 1340 mm
Weight	1790 kg

R1,00

Lathes

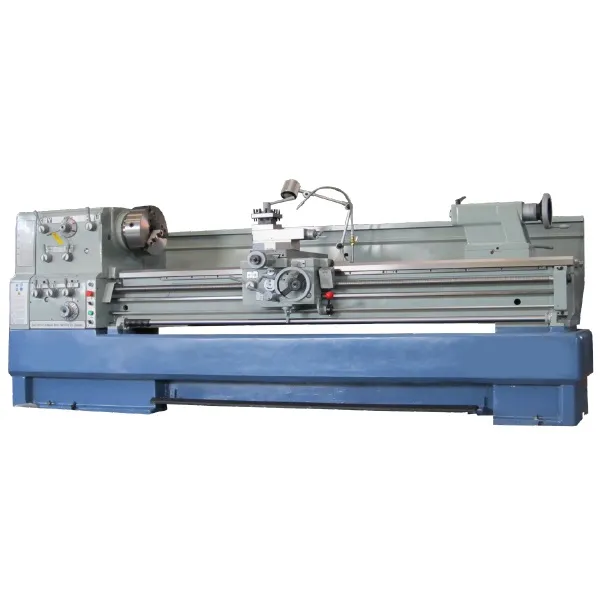

C6251 X 1500 / 2000 LATHE EX-STOCK

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

R1,00

Lathes

C6266 X 3000

TB-Series Precision Solid Base Lathes

One piece solid cast base lathe with clutch drive spindle:

High precision for heavier work

TB660x30

660 mm swing
3000 mm b/c
300 mm diameter over saddle
105 mm spindle bore
7.5 kw motor
3x spindle bearings
1 pcs solid base
Clutch and feed
TB-Series Precision Solid Base Lathes
One piece solid cast base lathe with clutch drive spindle:
- High precision for heavier work
TB660x30
- 660 mm swing
- 3000 mm b/c
- 300 mm diameter over saddle
- 105 mm spindle bore
- 7.5 kw motor
- 3x spindle bearings
- 1 pcs solid base
- Clutch and feed

Swing over bed	660 mm
Swing over saddle	440 mm
Swing in gap	900 mm
Length of gap	250 mm
Distance between centers	1500 / 2000 / 3000 mm
Width of bed	400 mm
Spindle bore / fitting	105 mm / D1-8
Spindle Speeds	25-1600 rpm
Top / cross slide travel	68 / 160 mm
Metric threads	0.4-120 mm (54 kinds)
Inch threads	7/16-80 TPI (54 kinds)
Diametrical Pitches	7/8-160 dp (42 kinds)
Module Pitches	0.25060 mp (46 kinds)
Tailstock travel	235 mm
Tailstock taper	MT5
Main motor	7.5 kw
Turning Length / Weight	1500 mm / 3060 kg 2000 mm / 3400 kg 3000 mm / 3800 kg

R1,00

Lathes

CO632 X 1000MM Lathe 220 OR 380 VOLT EX-STOCK

Swing over bed	330 mm
Swing over saddle	198 mm
Swing in gap	476 mm
Length of gap	150 mm
Distance between centers	1000 mm
Width of bed	187 mm
Spindle bore / fitting	35 mm / D1-4
Spindle Speeds	70-2000 rpm
Top / cross slide travel	68 / 160 mm
Metric threads	0.4-7 mm
Inch threads	4-56 TPI
Diametrical Pitches	8-210 dp
Module Pitches	0.2-3.5 mp
Tailstock travel	95 mm
Tailstock taper	3 mt
Main motor	1.5 kw (220V + 380V)
Dimension (L x W x H)	1800 x 700 x 1200 mm
Weight	500 kg

R1,00

CO632 X 1000MM Lathe 220 OR 380 VOLT EX-STOCK

Lathes

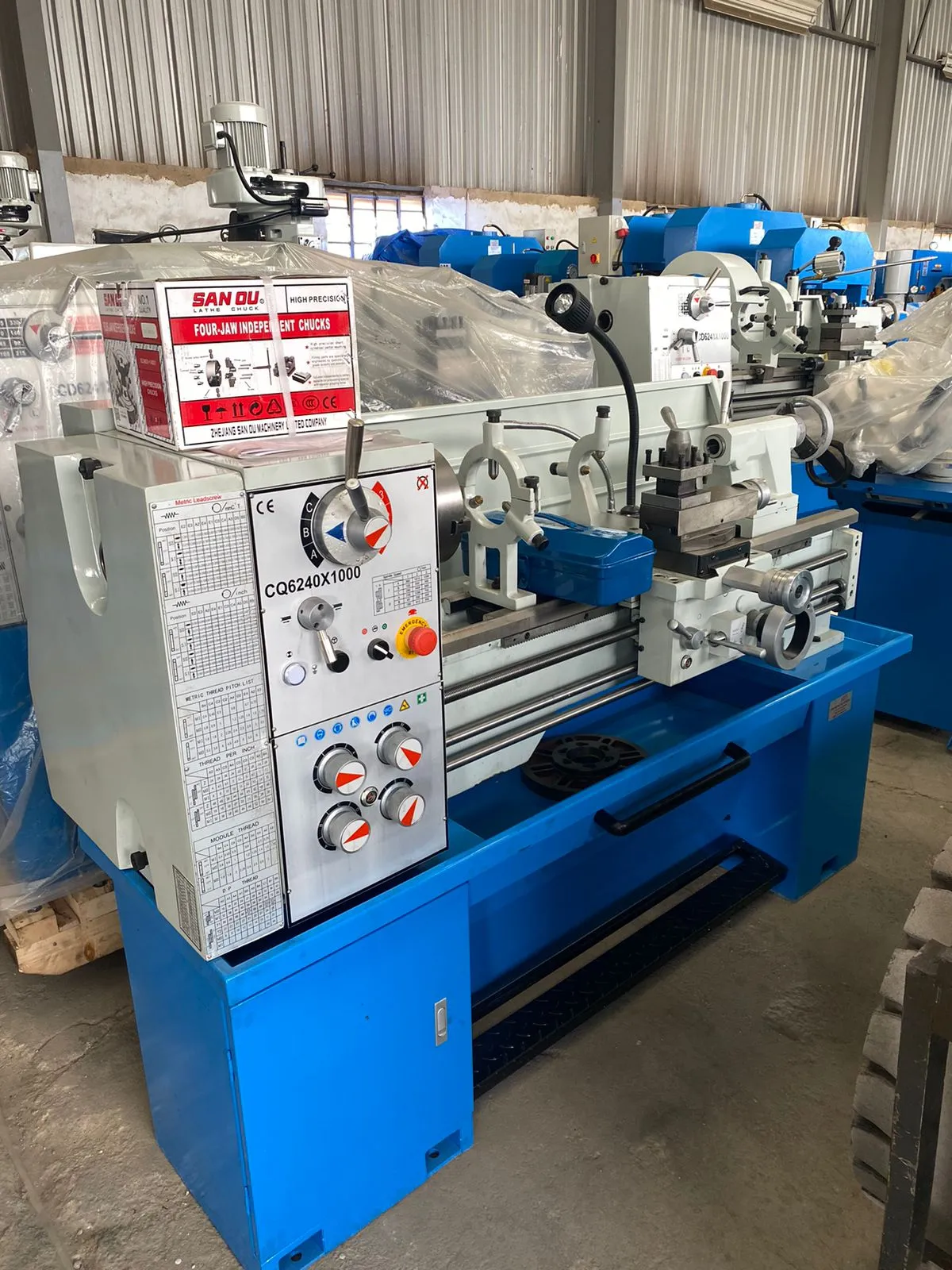

CQ6240 Lathe EX-STOCK

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

R1,00

Lathes

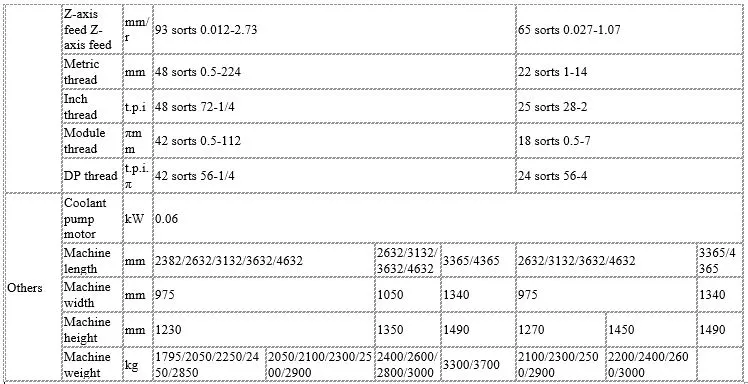

CS6250/6266 B and C series 1500/2000/3000 gap-bed lathes EX-STOCK

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

R1,00

Lathes

CW 6180 x 3000 LATHE

CAPACITY…

Max. swing : 800 mm

Swing over cross slide : 480 mm

Max. turning length : 3000mm

Bar capacity : 130 mm

SPINDLE…

Spindle speed range : 18 speed, 6-750 rpm

Chuck size : 12” 3 Jaw chuck

Type of spindle nose : C11

Spindle motor power : 11

R1,00

Lathes

CW 6180 x 4000mm lathe EX-STOCK

CAPACITY…

Max. swing : 800 mm

Swing over cross slide : 480 mm

Max. turning length : 4000mm

Bar capacity : 130 mm

SPINDLE…

Spindle speed range : 18 speed, 6-750 rpm

Chuck size : 12” 3 Jaw chuck

Type of spindle nose : C11

Spindle motor power : 11

R1,00

Lathes

CW 6180 x 5000 Lathe

CAPACITY…

Max. swing : 800 mm

Swing over cross slide : 480 mm

Max. turning length : 4000mm

Bar capacity : 130 mm

SPINDLE…

Spindle speed range : 18 speed, 6-750 rpm

Chuck size : 12” 3 Jaw chuck

Type of spindle nose : C11

Spindle motor power : 11

R1,00

Lathes

CW6280 X 3000

Dalian CW-Series Heavy Duty Lathes

Lathes designed for large work up to 3 ton

Here are some spec on machine range:

800 – 1000 mm swing over bed
1.5 – 5 m turning length
3 ton turning capacity

CW6280x3000

800 mm swing
3 000 mm bc
130 mm spindle bore
520 mm diameter over saddle
11 kw motor

R1,00

Lathes

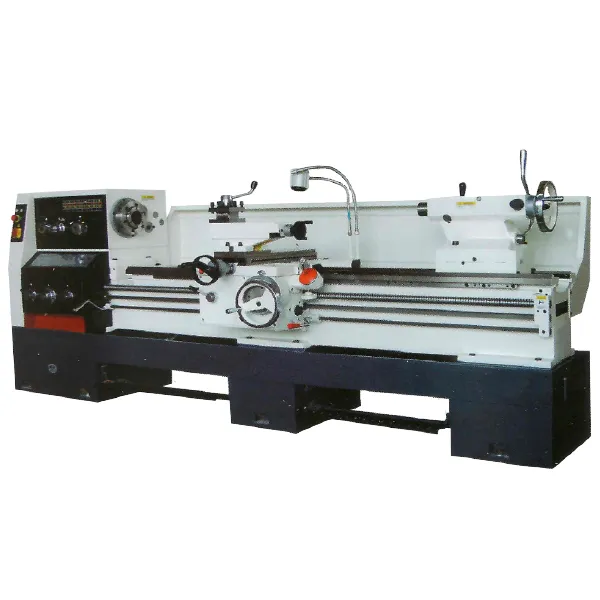

CY500 X 1500 / 2000

TY-Series Heavy Duty Lathes

Proven quality reliable lathes:

Clutch drive spindle

TY-500×2000

500 mm swing
2 000 mm bc
82 mm spindle bore
300 mm diameter over saddle
7.5 kw motor

Swing over bed	500 mm
Swing over saddle	300 mm
Swing in gap	710 mm
Spindle bore	82 mm
Between centers	1000, 1500, 2000, 3000, 4000, 5000 mm
Width of bed	390 mm
Spindle Speeds	9-1600 rpm
Tailstock taper	MT5
Tailstock travel	150 mm
Metric threads (no)	0.5-49 mm (48)
Inch thread (no)	72-1/8 TPI (46)
Modular thread (no)	0.5-112 mm (42)
Diameterial thread (no)	56-1/4 dp
Cross slide travel	340 mm
Top slide travel	150 mm
Motor	7.5 kw
Weight 3m + 500 kg/m	3300 kg

R1,00

Lathes

CY660 X 2000 / 3000

TY-Series Heavy Duty Lathes

Proven quality reliable lathes:

Clutch drive spindle

TY-660×3000

660 mm swing
3 000 mm bc
105 mm spindle bore
430 mm diameter over saddle
11 kw motor

Swing over bed	660 mm
Swing over saddle	430 mm
Swing in gap	870 mm
Spindle bore	82 mm
Between centers	1000, 1500, 2000, 3000, 4000, 5000 mm
Width of bed	390 mm
Spindle Speeds	9-1600 rpm
Tailstock taper	MT5
Tailstock travel	150 mm
Metric thread (no)	0.5-49 mm (48)
Inch thread (no)	72-1/8 TPI (46)
Modular thread (no)	0.5-112 mm (42)
Diameterial thread (no)	56-1/4 dp
Cross slide travel	360 mm
Top slide travel	200 mm
Motor	11 kw
Weight 3m + 500 kg/m	3500 kg
