Used Eccentric Press

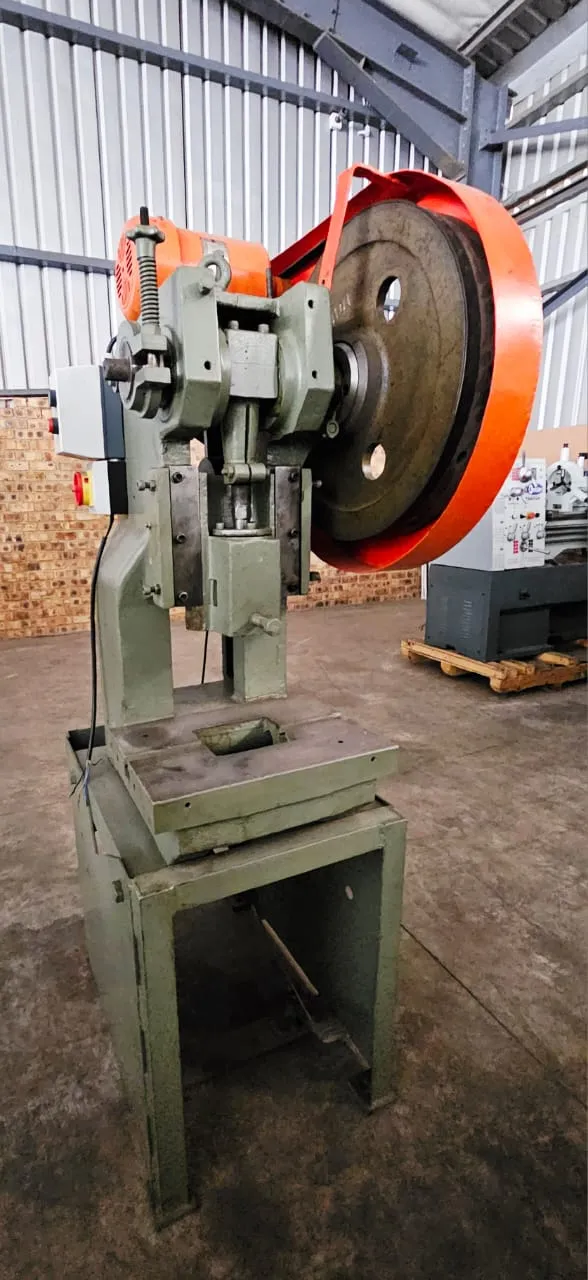

10 TON ECCENTRIC PRESS

Parameter Specification

Model J23-10 / J23-10D
Nominal Force (Capacity) 100 kN (10 Tons)
Stroke Length Adjustable (Typically 0 – 50 mm)
Strokes Per Minute (SPM) ~140 – 145 spm
Shut Height (Die Height) 130 mm – 180 mm (varies by model)
Ram Adjustment 35 mm
Throat Depth 130 mm (Standard)
Bolster / Table Area 360 mm x 240 mm
Bolster Thickness 35 mm – 50 mm
Table Hole Diameter Ø 100 mm – 120 mm
Ram Hole (Shank Size) Ø 30 mm x 50 mm Depth
Motor Power 1.1 kW
Voltage 380V (3-Phase)
Inclinable Angle Max 30° (Optional on some models)
Approx. Weight 350 kg – 500 kg
Dimensions (Approx.) 600 x 800 x 1500 mm
R1,00
10 TON ECCENTRIC PRESS
Used Eccentric Press
6 TON ECCENTRIC PRESS

Feature Metric Imperial (Approx)

Nominal Force 63 kN (6.3 Tons) 6.3 Tons
Stroke Length Adjustable (Typical: 0 – 35 mm) 0 – 1.4"
Strokes Per Minute (SPM) ~170 SPM (Very Fast)
Shut Height (Max) 110 – 150 mm 4.3" – 6"
Ram Adjustment 20 – 30 mm ~1"
Table Size (Bolster) 200 x 310 mm 8" x 12"
Throat Depth 110 mm 4.3"
Hole in Bed Ø 60 – 80 mm ~2.5" - 3"
Motor Power 0.75 kW 1 HP
Machine Weight ~350 – 400 kg
R1,00
6 TON ECCENTRIC PRESS
Used Eccentric Press
63 TON ECCENTIC PRESS

Feature Metric Imperial (Approx)

Nominal Force 630 kN (63 Tons) 63 Tons
Stroke Length Adjustable (10 – 100 mm) 0.4" – 4"
Strokes Per Minute 50 – 70 SPM
Shut Height (Max) 260 – 300 mm 10" – 12"
Ram Adjustment 70 – 80 mm ~3"
Table Size (Bolster) 710 x 480 mm 28" x 19"
Throat Depth 250 – 260 mm ~10"
Hole in Bed Ø 150 - 200 mm Ø 6" - 8"
Motor Power 5.5 kW 7.5 HP
Machine Weight ~4,200 – 4,500 kg ~9,500 lbs
Inclinable Angle Max 25°
R1,00
63 TON ECCENTIC PRESS
Used Eccentric Press
CAXTON 45 Ton Eccentric Press Price; R90,000 excl VAT

REF: #2602

Tonnage: 45 Ton

Strokes p/m: 110

Ram adjustment: 60mm

Bed size: 610x445mm

Centre hole diameter: 112mm

Motor: 3KW

R1,00
CAXTON 45 Ton Eccentric Press Price; R90,000 excl VAT
Used Eccentric Press

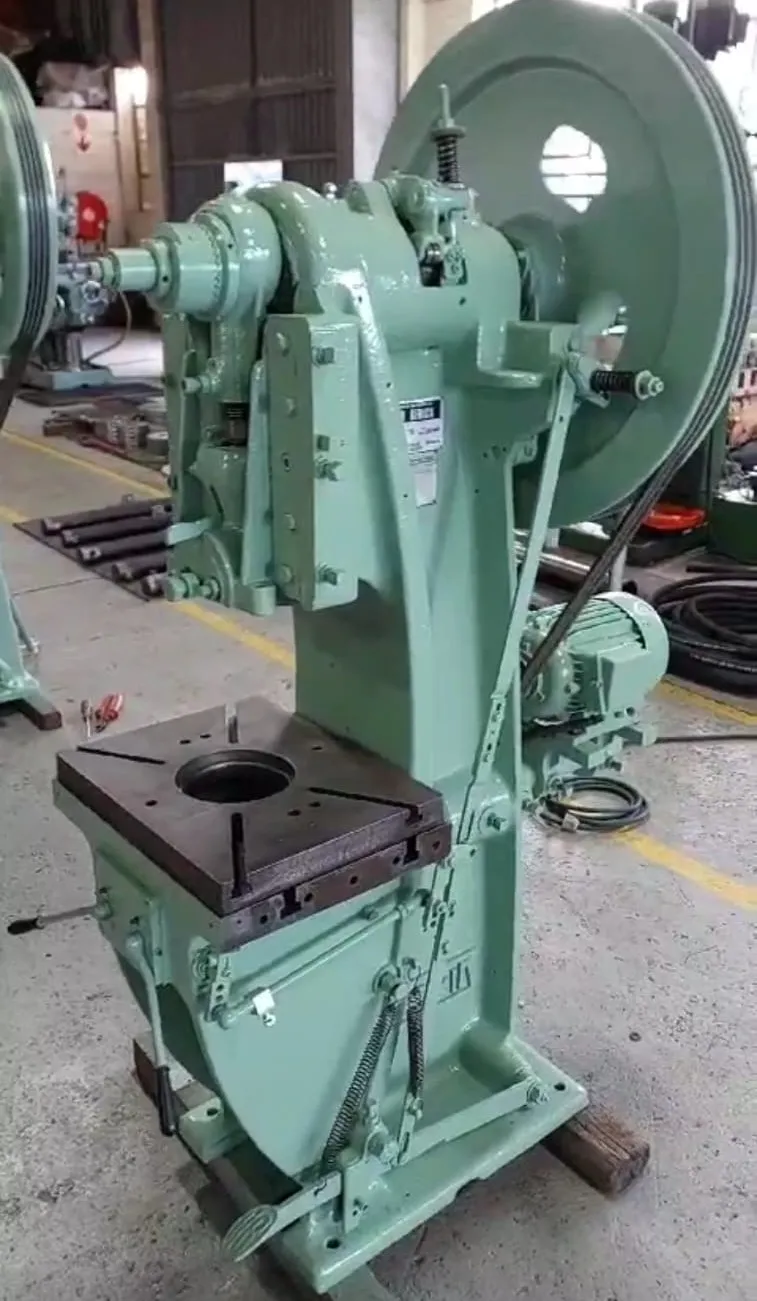

RASKIN 20 Ton Eccentric Press Price; R40,000 excl VAT

REF: #2601

R1,00
RASKIN 20 Ton Eccentric Press Price; R40,000 excl VAT
Used Eccentric Press
RHODES 25 TON ECCENTRIC PRESS

Parameter Specification

Model Rhodes RH 25 (or similar range)
Nominal Force (Capacity) 25 Tons (250 kN)
Type Open Front / C-Frame / Inclinable
Stroke Length Adjustable (Typically ½" – 3½" or 12mm – 90mm)
Strokes Per Minute (SPM) ~100 – 120 (Ungeared) / ~40 – 60 (Geared)
Shut Height (Ram to Bed) ~8" – 9" (200mm – 230mm) stroke down, adj. up
Ram Adjustment ~2" – 2.5" (50mm – 65mm)
Throat Depth ~7" – 8.5" (180mm – 215mm)
Bed / Bolster Area ~20" x 14" (500mm x 350mm)
Bed Opening (Hole) ~9" – 11" (230mm – 280mm)
Motor Power ~3 – 4 HP (2.2 kW – 3 kW)
Electrics 380V / 400V (3-Phase)
Approx. Weight 1,500 kg – 2,000 kg
R1,00
RHODES 25 TON ECCENTRIC PRESS
Used Eccentric Press
TOS LEXN 100 ECCENTRIC PRESS

Feature Metric Imperial (Approx)

Rated Force (Capacity) 100 Tons (1,000 kN) 100 Tons
Stroke Length (Adjustable) 10 – 125 mm 0.4" – 5"
Table Size 1000 x 640 mm 39.3" x 25"
Ram (Slide) Area 800 x 475 mm 31.5" x 18.7"
Throat Depth 355 mm 14"
Shut Height (Max) 380 mm 15"
Slide Adjustment 90 mm 3.5"
Strokes Per Minute 75 – 150 SPM
Main Motor Power 7.5 kW – 11 kW ~10 – 15 HP
Machine Weight ~10,600 kg ~23,300 lbs
Dimensions (L x W x H) 1725 x 2230 x 2970 mm
R1,00
TOS LEXN 100 ECCENTRIC PRESS
